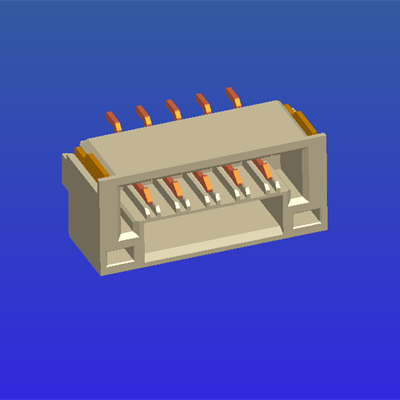

L5001AWR-02-F4MB3-R

L5001AWR-02-F4MB3-R

零件号: L5001AWR-02-F4MB3-R

包装:

交货时间:7~15 Day

UL: Yes

ROHS Compliant





立即咨询 暂无内容

产品描述

技术指标:

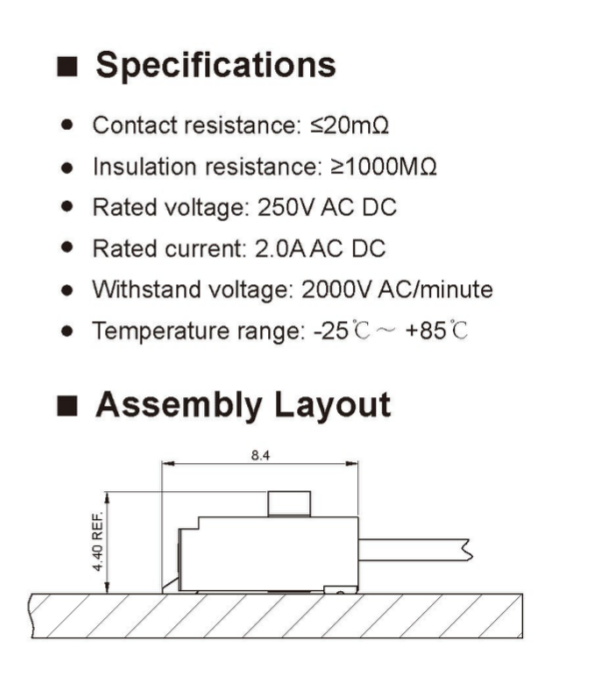

主要技术参数 Main Specifications

线 数(Poles):02

接触电阻(Contact resistance):≤20m Ω

绝缘电阻(Insulation resistance):≥1000M Ω

额定电压(Rated voltage):250V AC DC

额定电流(Rated current):2.0A AC DC

耐 电 压(Withstand Voltage):2000V AC/minute

温度范围(Temperature Range):-25°C~+85°C
